Modernisation measures can reduce energy consumption in old buildings and create more quality of life. Among the energy measures, the installation of a modern heating system with renewable energies is particularly interesting, as it leads to better marketing opportunities. Energy efficiency is also an important value criterion for rental properties, because in view of rising energy prices, tenants look very closely at the ancillary costs when choosing a flat. The combination of heat pump, demand-controlled ventilation and decentralised hot water generation increases the energy standard enormously and protects the building fabric permanently, e.g. against mould growth.

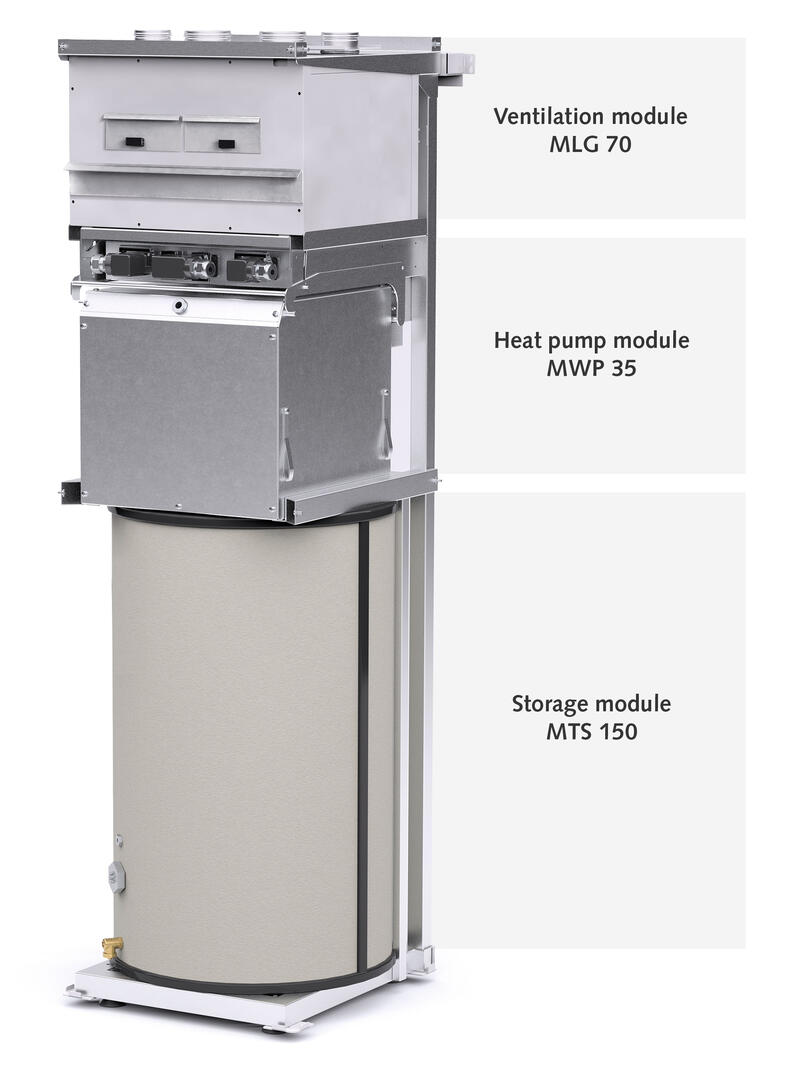

The MWL 35 modular heat pump from REMKO is the innovative and forward-looking heat pump system for modern residential construction. It proves that economic efficiency is possible with flexible renewable energies and diverse heat sources in residential construction. The system is perfectly suited for apartment buildings, flats and holiday homes that want to heat efficiently, prepare hot water and ventilate according to demand. Furthermore, surface cooling can be realised by using an appropriate source.
The MWL 35 is Bafa-listed and therefore eligible for subsidies.
All energies from different sources can be used as heat sources. All forms of energy are stored in the centrally installed source buffer in the house and are available to each of the installed modular heat pumps.
1 Modular heat pump
2 Combination ventilation grille
3 Exhaust air / outside air
4 Exhaust air
5 Supply air
6 Heaters
7 Air convector
8 Surface heating
9 Bathroom radiator
10 Source heat generator, flow
11 Source heat generator, return
12 Source buffer storage
13 Source flow
14 Source return
15 Heating rod
16 Inverter
17 Photovoltaics
18 Solar thermal
The certified, central integrated ventilation module with recuperative heat recovery realises volume flows between 40 and 100m³/h and can thus be used for residential units up to approx. 90m². The intelligent control system implements demand-responsive ventilation for moisture protection. This prevents the formation of mould in well-insulated buildings in new construction or renovation; that is, humid, stale air is extracted from the bathroom and kitchen, and fresh air is supplied to the living rooms and bedrooms.
The heat pump module operates as a water/water heat pump and provides heating and hot water for each residential unit. Each resident can thus independently set their preferred temperatures and bill their energy supplier individually. The heat pump is connected to the source line and is immediately ready for operation. Thanks to the inverter technology, the heat pump can be flexibly adapted to the heat demand of the residential unit.
Domestic water is heated in the integrated enamel domestic water storage tank in a decentralised manner. This process reduces both the water volume and the risk of legionella to a minimum. Your local domestic water ordinance therefore does not have to be taken into account. This reduces installation and follow-up costs.
| Variant | MWL 35 |
|---|---|
| System | water/water |
| Testing | DIBt / TZWL |
| Inverter technology | Series |
| Preparation for domestic water | Series |
| Heat pump manager |
