Monoblock heat pump WKM 80

Monoblock heat pump WKM 130

Monoblock heat pump WKM 200

WKM SERIES Everything compact in a single unit

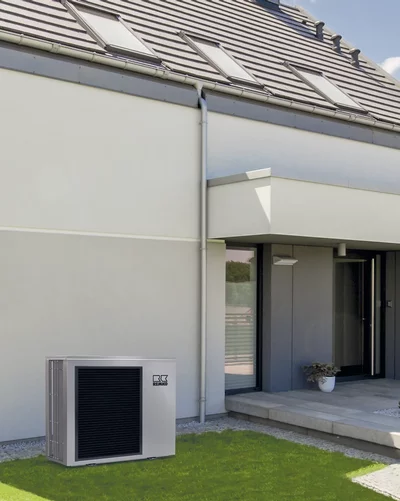

Monoblock heat pumps for easy assembly outdoors

Compact, quiet to operate and easy to install – these properties characterize the WKM air/water heat pump in a monoblock design. The inverter technology fulfils all demands on high efficiency. Since the complete refrigeration circuit is located outdoors, absolutely no refrigeration system work is required during installation. This reduces the work effort and guarantees the largest possible assembly and function safety. Thanks to the refrigerant R32, a water temperature of up to 60 °C is achieved and maximum efficiency is guaranteed. Due to the quiet operation, this heat pump can be used in almost all residential areas. The cooling function integrated in the standard version guarantees a pleasant room climate even in summer. Depending on the respective environment, the LWM heat pump is available in different design variants.

High inlet temperatures up to 60°C
Effective heating, preparation for domestic water and active cooling possible
REMKO Smart-Serv 6 kW or 9 kW for monoenergetic operation, screed drying and hygiene operation
Optimised use of photovoltaic current - Smart-Heating/Smart-Cooling
Control of two mixed and one non-mixed heating circuits
Intelligent control system Smart-Control Touch, use in intelligent Smart-Grid power mains possible
Wi-Fi ready
Especially noise-insulated condenser in outdoor unit
Integrated power-controlled circulation pump with EC technology for the supply of the buffer tank
Dew point control with room temperature/moisture sensor possible
Hermetically sealed refrigeration cycle

Technical data

Variant	WKM 80	WKM 100	WKM 130	WKM 170	WKM 200
Version	Monoblock	Monoblock	Monoblock	Monoblock	Monoblock
System	Air/water	Air/water	Air/water	Air/water	Air/water
Operating mode	Heating/cooling/hot water	Heating/cooling/hot water	Heating/cooling/hot water	Heating/cooling/hot water	Heating/cooling/hot water
Testing	EHPA	EHPA	EHPA	EHPA	EHPA
Inverter technology	Series	Series	Series	Series	Series
