Ceiling fan DVL 140 K
DVL SERIES Ceiling fans as supplement for hot air heating systems
Ceiling fans for reducing energy costs by activating lost ceiling heat in high-ceilinged halls
Thermal dynamic pushes heat upward. Result: Unused quantities of heat dam up near the ceiling. With the REMKO DVL 140 ceiling fan, this lost heat potential can be retrieved from the ceiling and returned to the work area. Valuable thermal energy is saved by this type of "heat recovery."
- High ventilation capacity
- High quality and long service life
- Quiet operation
- Low energy costs
- Single-phase a.c. motor, maintenance-free and malfunction-free for continuous operation
- Vibration-damping pendulum pipe suspension for low-vibration operation
- Easy to assemble
- Adjustable rotation speed, optional

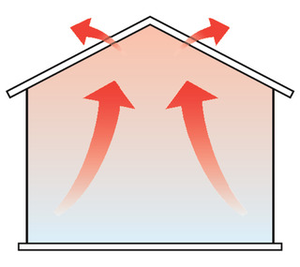

Based on the natural lift of hot air, most of the energy remains under the ceiling.

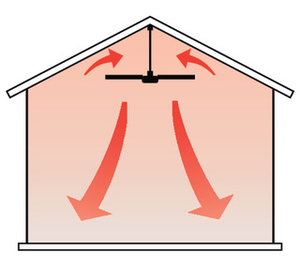

Through the use of a DVL ceiling fan, the warm air will be pushed downwards, constantly.
Technical data
| Variant | DVL 140 | DVL 140-K |
|---|---|---|
| Air flow rate max. | 15000 m³/h | 15000 m³/h |
| Speed | 300 / - m-1 | 300 / - m-1 |
| Fan blade diameter | 1420 mm | 1420 mm |
| Sound pressure level | 52 dB(A) | 52 dB(A) |
| Throw | 10 m | 10 m |
