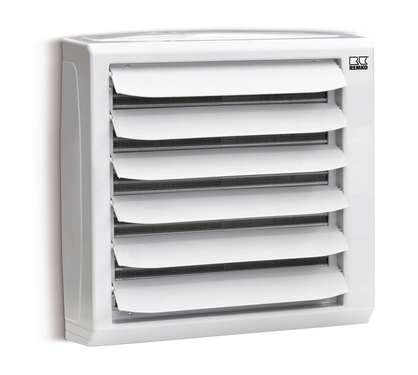

PWN HK SERIES Hot water heaters in low-temperature design with EC fan for cooling and heating
- Chilled water systems
- Heating capacity: 9.70 - 69.40 kW
- For industrial halls and commercial spaces
The efficient heating system for warehouses and supermarkets
The PWN HK hot water heaters are optimally suited for use in commercial applications due to their high-quality, robust plastic housing. Through the universal colouring of the devices, they fit in discreetly in almost every environment.
Thanks to the modern, energy-efficient EC motors, the user obtains not only energy savings in comparison with conventional AC motors, but also a considerably increased regulating comfort as the fan can be adapted variably to the operating conditions as required. Individually adjustable air control fins guarantee a precise adaptation of the air flow and reduce the flow resistance to a minimum. The interaction of housing design, fan selection and heat exchanger dimensioning ensure an even flow-through of the fin heat exchanger and therefore an optimum utilisation of the heat exchanger surface for the transmission of power.
A sophisticated mounting system guarantees that, in addition to the wall or ceiling mounting, a mounting inclined by 30° is also possible. The mounting bar on the device itself can continue to be inclined by up to 70°, therefore enabling an adaptation of the device alignment to the most difficult mounting conditions. The brackets are included in the scope of supply of the standard version. An condensate drip pan included in delivery enables an operation of the device even in cooling mode in case of wall mounting, therefore forming the ideal addition for securing the comfort zone.
- High-quality plastic housing for industrial applications
- Discreet design
- Modern, efficient EC technology
- Versatile mounting possibilities using series-standard bracket
- Cooling optionally possible in case of wall mounting
- Including built-in condensate drip pan
Technical data
Variant | PWN 35-1 HK | PWN 45-2 HK | PWN 75-3 HK | PWN 95-2 HK | PWN 105-3 HK |
---|---|---|---|---|---|
Cooling capacity | 2.6 kW | 4.4 kW | 7.9 kW | 14.8 kW | 16.2 kW |
Heating capacity | 9.7 kW | 19.0 kW | 33.9 kW | 54.9 kW | 69.4 kW |
Air flow rate min.-max. | 300-2850 m³/h | 250-2550 m³/h | 350-3900 m³/h | 1270-8560 m³/h | 715-7950 m³/h |
Sound pressure level min.-max. | 29-64 dB(A) | 29-64 dB(A) | 32-67 dB(A) | 37-71 dB(A) | 35-70 dB(A) |
Power supply | 230/1~/50 | 230/1~/50 | 230/1~/50 | 230/1~/50 | 230/1~/50 |
