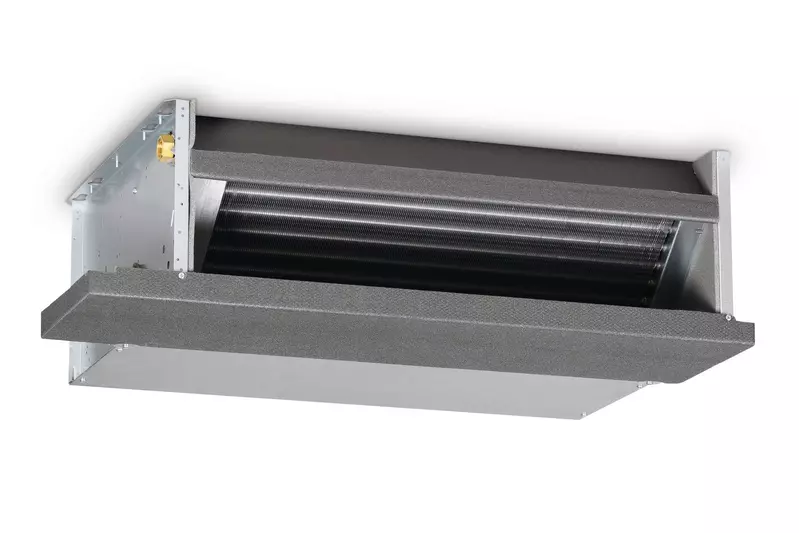

Ceiling chest KWK 725 ZW

KWK ZW SERIES Ceiling chests in 2-pipe or 4-pipe design for installation into false ceilings

Chilled water systems
Cooling capacity: 1.20 - 7.24 kW
For offices and hotels

Ceiling units for installation in ceiling voids – The perfect invisible solution

With a compact installation height, these ceiling units offer an optimal, discreet solution for offices, banks, or hotels. The rectangular air outlet is designed for the integration of adjustable air outlet grilles, allowing for customized air distribution.

The air is filtered at the air intake of the unit via a regenerable insert filter. The internal tangential fan enables multi-stage adjustment of the air volume. The diagonally mounted copper-aluminum heat exchanger is suitable for medium temperatures of up to 80°C.

By installing a heating coil, the units can easily be upgraded for a 4-pipe system. The coil connections are integrated on both sides within the sweat-water-insulated housing. For regulating cooling performance, a valve assembly for 2- and 4-pipe systems is available as an accessory.

Invisible mounting in intermediate spaces
Low installation height
Can be positioned flexibly
Minimum weight
Low-noise unit operation ("Silent" mode)
Particularly narrow dimensions
Simple equipping of the unit in a 4-pipe design
For horizontal installation arrangement

Technical data

Variant	KWK 125 ZW	KWK 165 ZW	KWK 205 ZW	KWK 255 ZW	KWK 305 ZW	KWK 355 ZW	KWK 455 ZW	KWK 535 ZW	KWK 595 ZW	KWK 725 ZW
Cooling capacity	1.2 kW	1.6 kW	2.1 kW	2.5 kW	3.1 kW	3.5 kW	4.5 kW	5.3 kW	5.9 kW	7.2 kW
Heating capacity	1.5 kW	2.0 kW	2.4 kW	2.9 kW	3.5 kW	4.0 kW	5.0 kW	5.8 kW	6.3 kW	7.7 kW
Air flow rate min.-max.	120-260 m³/h	140-290 m³/h	190-370 m³/h	210-410 m³/h	280-490 m³/h	310-530 m³/h	400-730 m³/h	430-780 m³/h	420-870 m³/h	450-920 m³/h
Sound pressure level min.-max.	17-32 dB(A)	17-32 dB(A)	23-39 dB(A)	23-39 dB(A)	21-33 dB(A)	21-33 dB(A)	26-42 dB(A)	26-42 dB(A)	26-43 dB(A)	24-43 dB(A)
Power supply	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50
