CDB SERIES Coanda design screen for KWD(-4) EC COANDA
Design screen for customised upgrading of KWD(-4) EC COANDA ceiling cassettes
The specially designed REMKO Coanda design screen is the perfect complement to the KWD(-4) EC COANDA ceiling cassette. It gives the ceiling cassette a special touch of individuality.
Whether existing devices or new installations, the design screen can be mounted cleanly, quickly, easily and without tools on the existing Coanda screen.
The screen is mounted by sliding it onto the existing Coanda screen. The composite material consists mainly of aluminium and plastic. The plastic core in the middle of the aluminium prevents condensation from forming due to the temperature falling below the dew point.
The design screen is available in 3 colours as standard and can be printed individually on customer request. A printable file with at least 300 dpi is required for this.
- Easy to install
- Modern design
- Customised design options
- UV- and weather-resistant
- No impairment of the unit function
- Compatible with KWD(-4) EC COANDA single grid
Technical data
| Variant | CDB anthracite | CDB signal grey | CDB Camura | CDM OEM |
|---|---|---|---|---|
| Compatibility | KWD 25-55 EC COANDA,KWD 25-4-45-4 EC COANDA | KWD 25-55 EC COANDA,KWD 25-4-45-4 EC COANDA | KWD 25-55 EC COANDA,KWD 25-4-45-4 EC COANDA | KWD 25-55 EC COANDA,KWD 25-4-45-4 EC COANDA |
| Weight | 1.3 kg | 1.3 kg | 1.3 kg | 1.3 kg |

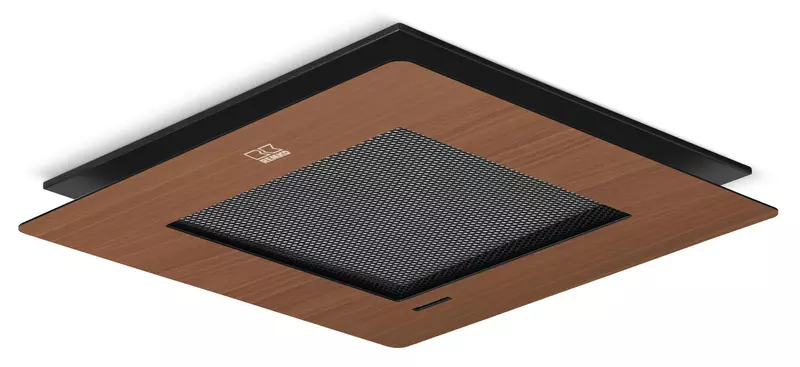

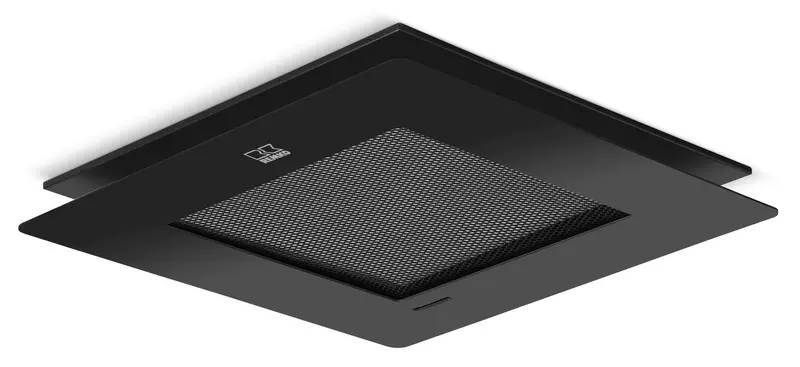

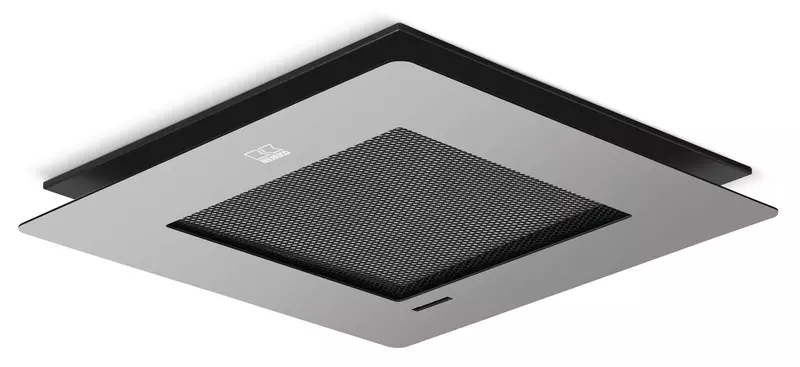

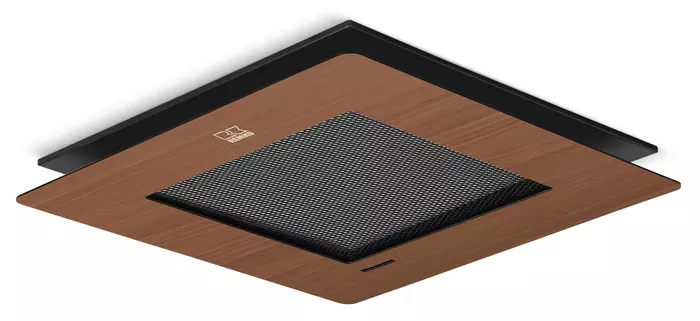

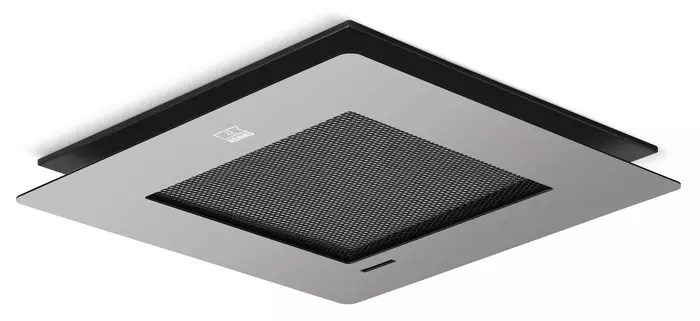

| Series colour | similar to RAL 7021 | similar to RAL 7004 | Camura | of your choice |
| Dimensions H/W/D | 3/650/650 mm | 3/650/650 mm | 3/650/650 mm | 3/650/650 mm |
